AlexNet
机器学习 · 动手深度学习。来自 Daily Learning 的学习笔记。
简介
Alex Krizhevsky 和 Geoffrey Hinton 在 2012 年提出的卷积神经网络架构，在 ImageNet 图像分类挑战赛中取得了显著的成绩，标志着深度学习在计算机视觉领域的突破。

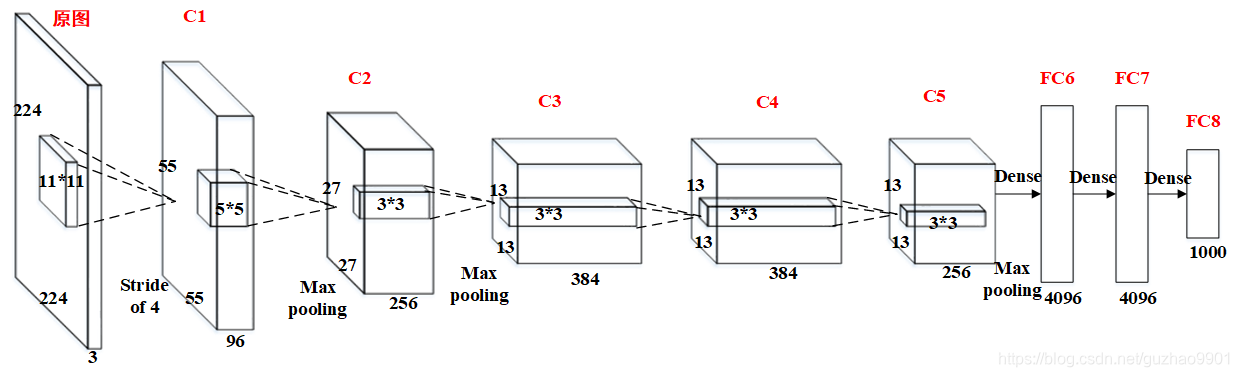

网络结构
5 个卷积层和 3 个全连接层组成
与 LeNet 的区别
- 更大的卷积核，更多的卷积层、通道数
- 池化层使用 Max Pooling 代替 Average Pooling
- 激活函数使用 ReLU 代替 Sigmoid
- 全连接层中使用 Dropout
- 数据增强
实现
代码 4 · In [1]
import torch
from torch import nn
import torchinfo
import util已保存输出
/root/autodl-tmp/envs/daily_learning/lib/python3.11/site-packages/requests/__init__.py:92: RequestsDependencyWarning: Unable to find acceptable character detection dependency (chardet or charset_normalizer). warnings.warn(
代码 5 · In [2]
net = nn.Sequential(
# (1, 224, 224)（灰度图，忽略 batch_size）
nn.Conv2d(1, 96, kernel_size=11, stride=4, padding=2), nn.ReLU(), # (96, 55, 55)
nn.MaxPool2d(kernel_size=3, stride=2), # (96, 27, 27)
nn.Conv2d(96, 256, kernel_size=5, padding=2), nn.ReLU(), # (256, 27, 27)
nn.MaxPool2d(kernel_size=3, stride=2), # (256, 13, 13)
nn.Conv2d(256, 384, kernel_size=3, padding=1), nn.ReLU(), # (384, 13, 13)
nn.Conv2d(384, 384, kernel_size=3, padding=1), nn.ReLU(), # (384, 13, 13)
nn.Conv2d(384, 256, kernel_size=3, padding=1), nn.ReLU(), # (256, 13, 13)
nn.MaxPool2d(kernel_size=3, stride=2), # (256, 6, 6)
nn.Flatten(), # (256*6*6)
nn.Linear(256*6*6, 4096), nn.ReLU(), nn.Dropout(0.5), # (4096)
nn.Linear(4096, 4096), nn.ReLU(), nn.Dropout(0.5), # (4096)
nn.Linear(4096, 10) # (10)，适配 fashion-mnist 数据集
)检查模型
代码 7 · In [3]
torchinfo.summary(net, input_size=(1, 1, 224, 224), col_names=["input_size", "output_size", "num_params"])已保存输出
=================================================================================================================== Layer (type:depth-idx) Input Shape Output Shape Param # =================================================================================================================== Sequential [1, 1, 224, 224] [1, 10] -- ├─Conv2d: 1-1 [1, 1, 224, 224] [1, 96, 55, 55] 11,712 ├─ReLU: 1-2 [1, 96, 55, 55] [1, 96, 55, 55] -- ├─MaxPool2d: 1-3 [1, 96, 55, 55] [1, 96, 27, 27] -- ├─Conv2d: 1-4 [1, 96, 27, 27] [1, 256, 27, 27] 614,656 ├─ReLU: 1-5 [1, 256, 27, 27] [1, 256, 27, 27] -- ├─MaxPool2d: 1-6 [1, 256, 27, 27] [1, 256, 13, 13] -- ├─Conv2d: 1-7 [1, 256, 13, 13] [1, 384, 13, 13] 885,120 ├─ReLU: 1-8 [1, 384, 13, 13] [1, 384, 13, 13] -- ├─Conv2d: 1-9 [1, 384, 13, 13] [1, 384, 13, 13] 1,327,488 ├─ReLU: 1-10 [1, 384, 13, 13] [1, 384, 13, 13] -- ├─Conv2d: 1-11 [1, 384, 13, 13] [1, 256, 13, 13] 884,992 ├─ReLU: 1-12 [1, 256, 13, 13] [1, 256, 13, 13] -- ├─MaxPool2d: 1-13 [1, 256, 13, 13] [1, 256, 6, 6] -- ├─Flatten: 1-14 [1, 256, 6, 6] [1, 9216] -- ├─Linear: 1-15 [1, 9216] [1, 4096] 37,752,832 ├─ReLU: 1-16 [1, 4096] [1, 4096] -- ├─Dropout: 1-17 [1, 4096] [1, 4096] -- ├─Linear: 1-18 [1, 4096] [1, 4096] 16,781,312 ├─ReLU: 1-19 [1, 4096] [1, 4096] -- ├─Dropout: 1-20 [1, 4096] [1, 4096] -- ├─Linear: 1-21 [1, 4096] [1, 10] 40,970 =================================================================================================================== Total params: 58,299,082 Trainable params: 58,299,082 Non-trainable params: 0 Total mult-adds (Units.GIGABYTES): 1.06 =================================================================================================================== Input size (MB): 0.20 Forward/backward pass size (MB): 5.27 Params size (MB): 233.20 Estimated Total Size (MB): 238.66 ===================================================================================================================
依旧用 Fashion-MNIST 训练，训练前图像大小调整为 224×224。
代码 9 · In [4]
lr = 0.1
num_epochs = 10
batch_size = 50
train_iter, test_iter = util.data.load_data_fashion_mnist(batch_size, resize=224)

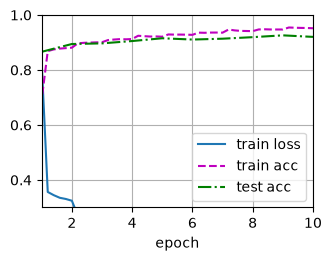

util.train.train_ch6(net, train_iter, test_iter, num_epochs, lr, device=util.try_gpu(), ylim=(0.3, 1.0))已保存输出
loss 0.128, train acc 0.952, test acc 0.920 7083.2 examples/sec on cuda:0
代码 10 · In [5]
def predict(model, test_iter):
"""预测模型在测试集上的结果"""
for X, y in test_iter:
X = X.to(util.try_gpu())
y = y.to(util.try_gpu())
break
trues = util.data.get_fashion_mnist_labels(y)
preds = util.data.get_fashion_mnist_labels(model(X).argmax(dim=1))
titles = [true + '\n' + pred for true, pred in zip(trues, preds)]
util.show_images(X[0:9].reshape(9, 224, 224).cpu(), 3, 3, titles=titles[0:9])

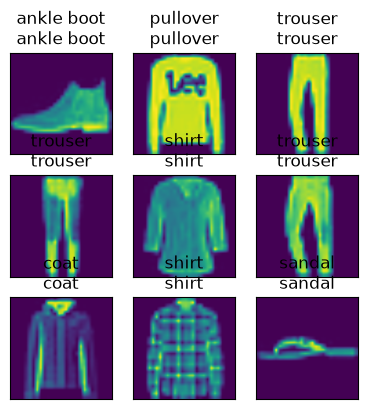

predict(net, test_iter)
代码 11 · In [6]
torch.save(net.state_dict(), './models/AlexNet.pth')
