VGG
机器学习 · 动手深度学习。来自 Daily Learning 的学习笔记。
简介

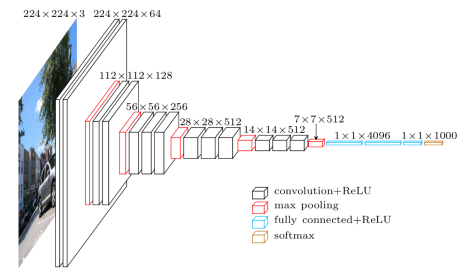

由牛津大学视觉几何组（Visual Geometry Group）提出。主要特点是使用小卷积核（3x3）堆叠成块，使用块构建深度网络。
VGG 块
一个 VGG 块有若干个卷积层和一个池化层收尾。
- n 个 3x3 卷积核（步幅 1，填充 1）
- 2x2 最大池化（步幅 2）

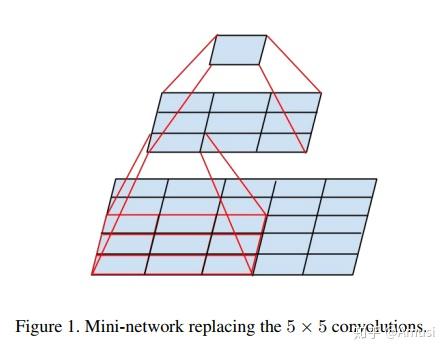

多个 3x3 卷积核堆叠可以扩大感受野，并且比大卷积核的非线性拟合能力更强。
VGG 用块堆叠的方式改进 AlexNet 一些略显随意的设计
实现
代码 3 · In [1]
import torch
from torch import nn
import torchinfo
import util已保存输出
/root/autodl-tmp/envs/daily_learning/lib/python3.11/site-packages/requests/__init__.py:92: RequestsDependencyWarning: Unable to find acceptable character detection dependency (chardet or charset_normalizer). warnings.warn(
VGG 块
代码 5 · In [2]
def vgg_block(num_convs: int, in_channels: int, out_channels: int):
"""VGG 块
:param num_convs: 卷积层数
:param in_channels: 输入通道数
:param out_channels: 输出通道数
"""
layers = []
# 逐层堆叠卷积层和 ReLU
for _ in range(num_convs):
layers.append(nn.Conv2d(in_channels, out_channels, kernel_size=3, padding=1))
layers.append(nn.ReLU())
# 第一次循环后，输入通道数变为输出通道数
in_channels = out_channels
# 池化层收尾
layers.append(nn.MaxPool2d(kernel_size=2, stride=2))
return nn.Sequential(*layers)代码 6 · In [3]
def vgg(conv_arch: list[tuple[int, int]], in_channels: int=1) -> nn.Sequential:
"""VGG 网络
:param conv_arch: 卷积层架构，列表中每个元素是一个元组 (num_convs, out_channels)
:param in_channels: 输入通道数
:return: VGG 网络
"""
# 固定 5 块，正好把 224x224 的图像缩小到 7x7
assert len(conv_arch) == 5, "VGG 网络必须有 5 个卷积块"
conv_blks = [] # 存储 VGG 块
for (num_convs, out_channels) in conv_arch:
conv_blks.append(vgg_block(num_convs, in_channels, out_channels))
# 下一层的输入通道数 是 当前的输出通道数
in_channels = out_channels
return nn.Sequential(
*conv_blks, # 堆叠所有 VGG 块
nn.Flatten(), # 7x7 的特征图展平为向量
# 三个全连接层
nn.Linear(out_channels * 7 * 7, 4096), nn.ReLU(), nn.Dropout(0.5),
nn.Linear(4096, 4096), nn.ReLU(), nn.Dropout(0.5),
nn.Linear(4096, 10)
)VGG-11 的架构，每一块高宽减半，通道数翻倍
代码 8 · In [4]
conv_arch = [(1, 64),
(1, 128),
(2, 256),
(2, 512),
(2, 512)]
net = vgg(conv_arch, in_channels=1)
torchinfo.summary(net, input_size=(1, 1, 224, 224), col_names=["input_size", "output_size", "num_params"])已保存输出
=================================================================================================================== Layer (type:depth-idx) Input Shape Output Shape Param # =================================================================================================================== Sequential [1, 1, 224, 224] [1, 10] -- ├─Sequential: 1-1 [1, 1, 224, 224] [1, 64, 112, 112] -- │ └─Conv2d: 2-1 [1, 1, 224, 224] [1, 64, 224, 224] 640 │ └─ReLU: 2-2 [1, 64, 224, 224] [1, 64, 224, 224] -- │ └─MaxPool2d: 2-3 [1, 64, 224, 224] [1, 64, 112, 112] -- ├─Sequential: 1-2 [1, 64, 112, 112] [1, 128, 56, 56] -- │ └─Conv2d: 2-4 [1, 64, 112, 112] [1, 128, 112, 112] 73,856 │ └─ReLU: 2-5 [1, 128, 112, 112] [1, 128, 112, 112] -- │ └─MaxPool2d: 2-6 [1, 128, 112, 112] [1, 128, 56, 56] -- ├─Sequential: 1-3 [1, 128, 56, 56] [1, 256, 28, 28] -- │ └─Conv2d: 2-7 [1, 128, 56, 56] [1, 256, 56, 56] 295,168 │ └─ReLU: 2-8 [1, 256, 56, 56] [1, 256, 56, 56] -- │ └─Conv2d: 2-9 [1, 256, 56, 56] [1, 256, 56, 56] 590,080 │ └─ReLU: 2-10 [1, 256, 56, 56] [1, 256, 56, 56] -- │ └─MaxPool2d: 2-11 [1, 256, 56, 56] [1, 256, 28, 28] -- ├─Sequential: 1-4 [1, 256, 28, 28] [1, 512, 14, 14] -- │ └─Conv2d: 2-12 [1, 256, 28, 28] [1, 512, 28, 28] 1,180,160 │ └─ReLU: 2-13 [1, 512, 28, 28] [1, 512, 28, 28] -- │ └─Conv2d: 2-14 [1, 512, 28, 28] [1, 512, 28, 28] 2,359,808 │ └─ReLU: 2-15 [1, 512, 28, 28] [1, 512, 28, 28] -- │ └─MaxPool2d: 2-16 [1, 512, 28, 28] [1, 512, 14, 14] -- ├─Sequential: 1-5 [1, 512, 14, 14] [1, 512, 7, 7] -- │ └─Conv2d: 2-17 [1, 512, 14, 14] [1, 512, 14, 14] 2,359,808 │ └─ReLU: 2-18 [1, 512, 14, 14] [1, 512, 14, 14] -- │ └─Conv2d: 2-19 [1, 512, 14, 14] [1, 512, 14, 14] 2,359,808 │ └─ReLU: 2-20 [1, 512, 14, 14] [1, 512, 14, 14] -- │ └─MaxPool2d: 2-21 [1, 512, 14, 14] [1, 512, 7, 7] -- ├─Flatten: 1-6 [1, 512, 7, 7] [1, 25088] -- ├─Linear: 1-7 [1, 25088] [1, 4096] 102,764,544 ├─ReLU: 1-8 [1, 4096] [1, 4096] -- ├─Dropout: 1-9 [1, 4096] [1, 4096] -- ├─Linear: 1-10 [1, 4096] [1, 4096] 16,781,312 ├─ReLU: 1-11 [1, 4096] [1, 4096] -- ├─Dropout: 1-12 [1, 4096] [1, 4096] -- ├─Linear: 1-13 [1, 4096] [1, 10] 40,970 =================================================================================================================== Total params: 128,806,154 Trainable params: 128,806,154 Non-trainable params: 0 Total mult-adds (Units.GIGABYTES): 7.55 =================================================================================================================== Input size (MB): 0.20 Forward/backward pass size (MB): 59.47 Params size (MB): 515.22 Estimated Total Size (MB): 574.90 ===================================================================================================================
太大了，减少一些通道数来训练
代码 10 · In [9]
ratio = 4
small_arch = [(convs, channels // ratio) for (convs, channels) in conv_arch]
net = vgg(small_arch, in_channels=1)代码 11 · In [11]
lr = 0.09
num_epochs = 10
batch_size = 128
train_iter, test_iter = util.data.load_data_fashion_mnist(batch_size=batch_size, resize=224)

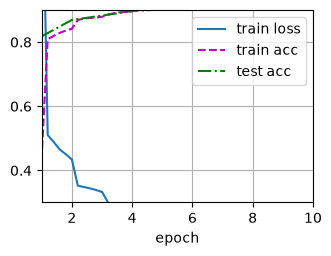

util.train.train_ch6(net, train_iter, test_iter, num_epochs, lr, device=util.try_gpu())已保存输出
loss 0.167, train acc 0.938, test acc 0.920 6058.3 examples/sec on cuda:0
代码 12 · In [13]
torch.save(net.state_dict(), "./models/VGG.pth")
