GoogLeNet
机器学习 · 动手深度学习。来自 Daily Learning 的学习笔记。
Inception 块
使用多种路径（卷积核大小、超参数、池化）并行提取特征，最后将结果合并。
路径分解
白色块变化通道数，蓝色块真正提取特征。
- 路径1: 不考虑空间，只看通道特征
- 路径2: 1x1卷积降维，3x3 卷积提取小视野特征
- 路径3: 1x1卷积降维，5x5 卷积提取大视野特征
- 路径4: MaxPooling 保留强响应特征，1x1卷积变换通道
路径合并
输入与输出高宽相同，所有路径在“通道维度”上 concat。
复杂度
| 参数量 | 计算量 | |
|---|---|---|
| Inception | 0.16M | 128M |
| 3x3 Conv | 0.44M | 346M |
| 5x5 Conv | 1.22M | 963M |
大量使用 1x1 卷积降维，复杂度远低于直接使用 3x3 或 5x5 多通道卷积。

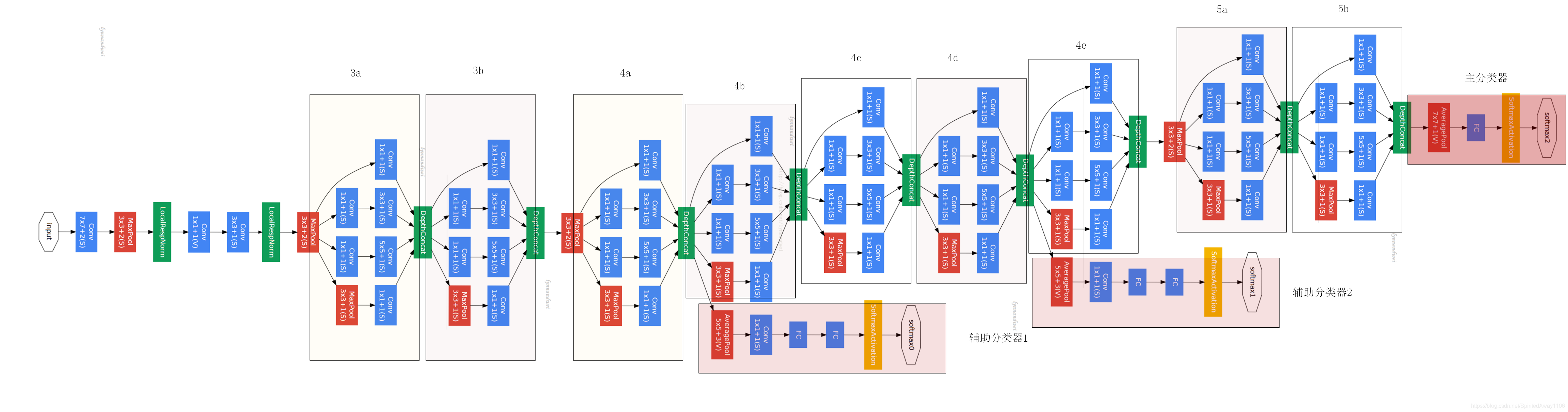

架构
变种
- Inception-v2: 使用 BatchNorm
- Inception-v3: 修改 Inception 块
- 替换 5x5 卷积为多个 3x3 卷积（来自 VGG）
- 替换 5x5 卷积为 1x7 + 7x1 卷积（一些只看列一些只看行）
- 替换 3x3 卷积为 1x3 + 3x1 卷积
- 更深
- Inception-v4: 使用残差连接
实现
代码 3 · In [1]
import torch
from torch import nn
from torch.nn import functional as F
from torchinfo import summary
import util已保存输出
/root/autodl-tmp/envs/daily_learning/lib/python3.11/site-packages/requests/__init__.py:92: RequestsDependencyWarning: Unable to find acceptable character detection dependency (chardet or charset_normalizer). warnings.warn(
Inception 块
代码 5 · In [2]
class Inception(nn.Module):
def __init__(self, in_channels: int, c1: int, c2: tuple[int, int], c3: tuple[int, int], c4: int, **kwargs):
"""Inception 块
:param in_channels: 输入通道数
:param c1: 路径 1 的 1x1 卷积输出通道数
:param c2: 路径 2 的两层通道数，c2[0] 是 1x1 卷积的输出通道数，c2[1] 是 3x3 卷积的输出通道数
:param c3: 路径 3 的两层通道数，c3[0] 是 1x1 卷积的输出通道数，c3[1] 是 5x5 卷积的输出通道数
:param c4: 路径 4 的 1x1 卷积输出通道数
"""
super(Inception, self).__init__(**kwargs)
# path 1
self.p1_1 = nn.Conv2d(in_channels, c1, kernel_size=1) # 1x1 卷积
# path 2
self.p2_1 = nn.Conv2d(in_channels, c2[0], kernel_size=1) # 1x1 卷积
self.p2_2 = nn.Conv2d(c2[0], c2[1], kernel_size=3, padding=1) # 3x3 卷积
# path 3
self.p3_1 = nn.Conv2d(in_channels, c3[0], kernel_size=1) # 1x1 卷积
self.p3_2 = nn.Conv2d(c3[0], c3[1], kernel_size=5, padding=2) # 5x5 卷积
# path 4
self.p4_1 = nn.MaxPool2d(kernel_size=3, stride=1, padding=1) # 3x3 最大池化
self.p4_2 = nn.Conv2d(in_channels, c4, kernel_size=1) # 1x1 卷积
def forward(self, X: torch.Tensor) -> torch.Tensor:
p1 = F.relu(self.p1_1(X))
p2 = F.relu(self.p2_2(F.relu(self.p2_1(X))))
p3 = F.relu(self.p3_2(F.relu(self.p3_1(X))))
p4 = F.relu(self.p4_2(self.p4_1(X)))
return torch.cat((p1, p2, p3, p4), dim=1) # 在通道维度上 concat实现每个 Stage
真 tm 多
代码 7 · In [3]
b1 = nn.Sequential(
nn.Conv2d(1, 64, kernel_size=7, stride=2, padding=3),
nn.ReLU(),
nn.MaxPool2d(kernel_size=3, stride=2, padding=1),
)
b2 = nn.Sequential(
nn.Conv2d(64, 64, kernel_size=1),
nn.ReLU(),
nn.Conv2d(64, 192, kernel_size=3, padding=1),
nn.MaxPool2d(kernel_size=3, stride=2, padding=1),
)
b3 = nn.Sequential(
Inception(192, 64, (96, 128), (16, 32), 32),
Inception(256, 128, (128, 192), (32, 96), 64),
nn.MaxPool2d(kernel_size=3, stride=2, padding=1)
)
b4 = nn.Sequential(
Inception(480, 192, (96, 208), (16, 48), 64),
Inception(512, 160, (112, 224), (24, 64), 64),
Inception(512, 128, (128, 256), (24, 64), 64),
Inception(512, 112, (144, 288), (32, 64), 64),
Inception(528, 256, (160, 320), (32, 128), 128),
nn.MaxPool2d(kernel_size=3, stride=2, padding=1)
)
b5 = nn.Sequential(
Inception(832, 256, (160, 320), (32, 128), 128),
Inception(832, 384, (192, 384), (48, 128), 128),
nn.AdaptiveAvgPool2d((1, 1)),
nn.Flatten()
)接上 MLP
代码 9 · In [4]
net = nn.Sequential(
b1, b2, b3, b4, b5,
nn.Linear(1024, 10)
)代码 10 · In [5]
summary(net, input_size=(1, 1, 96, 96), col_names=["input_size", "output_size", "num_params"], depth=2)已保存输出
=================================================================================================================== Layer (type:depth-idx) Input Shape Output Shape Param # =================================================================================================================== Sequential [1, 1, 96, 96] [1, 10] -- ├─Sequential: 1-1 [1, 1, 96, 96] [1, 64, 24, 24] -- │ └─Conv2d: 2-1 [1, 1, 96, 96] [1, 64, 48, 48] 3,200 │ └─ReLU: 2-2 [1, 64, 48, 48] [1, 64, 48, 48] -- │ └─MaxPool2d: 2-3 [1, 64, 48, 48] [1, 64, 24, 24] -- ├─Sequential: 1-2 [1, 64, 24, 24] [1, 192, 12, 12] -- │ └─Conv2d: 2-4 [1, 64, 24, 24] [1, 64, 24, 24] 4,160 │ └─ReLU: 2-5 [1, 64, 24, 24] [1, 64, 24, 24] -- │ └─Conv2d: 2-6 [1, 64, 24, 24] [1, 192, 24, 24] 110,784 │ └─MaxPool2d: 2-7 [1, 192, 24, 24] [1, 192, 12, 12] -- ├─Sequential: 1-3 [1, 192, 12, 12] [1, 480, 6, 6] -- │ └─Inception: 2-8 [1, 192, 12, 12] [1, 256, 12, 12] 163,696 │ └─Inception: 2-9 [1, 256, 12, 12] [1, 480, 12, 12] 388,736 │ └─MaxPool2d: 2-10 [1, 480, 12, 12] [1, 480, 6, 6] -- ├─Sequential: 1-4 [1, 480, 6, 6] [1, 832, 3, 3] -- │ └─Inception: 2-11 [1, 480, 6, 6] [1, 512, 6, 6] 376,176 │ └─Inception: 2-12 [1, 512, 6, 6] [1, 512, 6, 6] 449,160 │ └─Inception: 2-13 [1, 512, 6, 6] [1, 512, 6, 6] 510,104 │ └─Inception: 2-14 [1, 512, 6, 6] [1, 528, 6, 6] 605,376 │ └─Inception: 2-15 [1, 528, 6, 6] [1, 832, 6, 6] 868,352 │ └─MaxPool2d: 2-16 [1, 832, 6, 6] [1, 832, 3, 3] -- ├─Sequential: 1-5 [1, 832, 3, 3] [1, 1024] -- │ └─Inception: 2-17 [1, 832, 3, 3] [1, 832, 3, 3] 1,043,456 │ └─Inception: 2-18 [1, 832, 3, 3] [1, 1024, 3, 3] 1,444,080 │ └─AdaptiveAvgPool2d: 2-19 [1, 1024, 3, 3] [1, 1024, 1, 1] -- │ └─Flatten: 2-20 [1, 1024, 1, 1] [1, 1024] -- ├─Linear: 1-6 [1, 1024] [1, 10] 10,250 =================================================================================================================== Total params: 5,977,530 Trainable params: 5,977,530 Non-trainable params: 0 Total mult-adds (Units.MEGABYTES): 276.66 =================================================================================================================== Input size (MB): 0.04 Forward/backward pass size (MB): 4.74 Params size (MB): 23.91 Estimated Total Size (MB): 28.69 ===================================================================================================================
训练
代码 12 · In [6]
batch_size = 50
lr = 0.01
num_epochs = 10
train_iter, test_iter = util.data.load_data_fashion_mnist(batch_size, resize=96)
util.train.train_ch6(net, train_iter, test_iter, num_epochs, lr, device=util.try_gpu())已保存输出

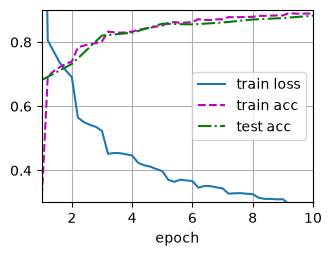

loss 0.297, train acc 0.889, test acc 0.882 2977.4 examples/sec on cuda:0
代码 13 · In [9]
torch.save(net.state_dict(), "./models/GoogLeNet.pth")
